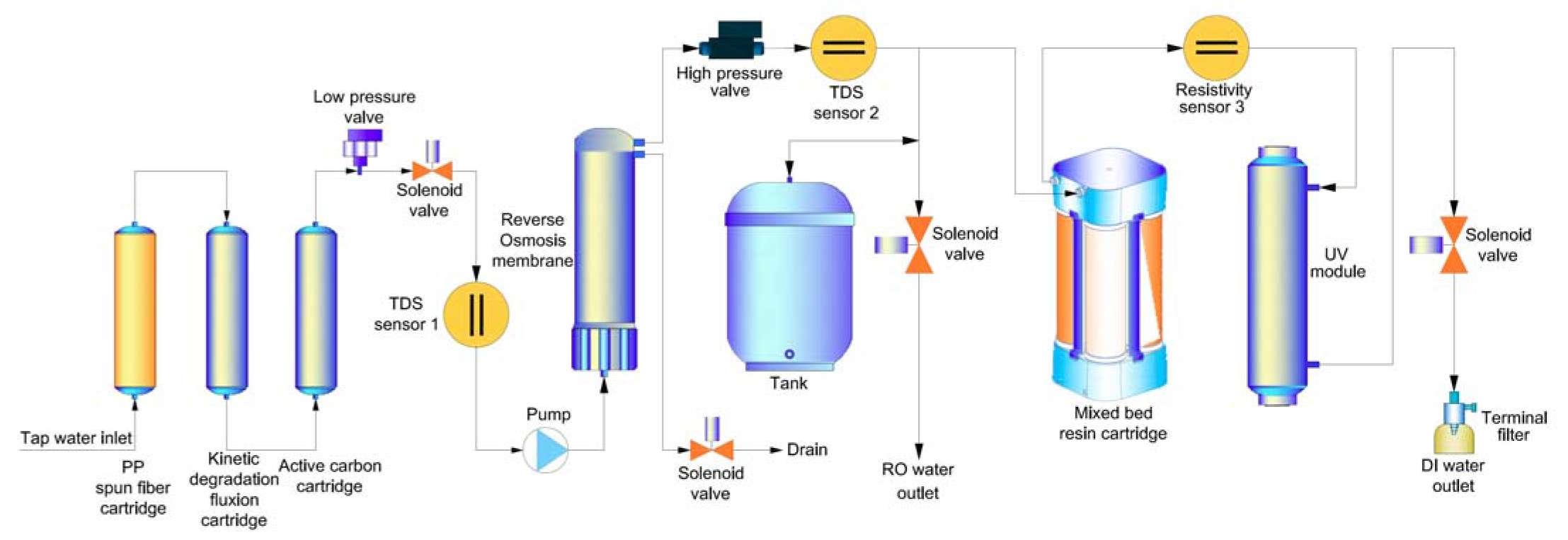

Flow Schematic

Specifications

Model Master-Q15 Master-Q15UT Master-Q30 Master-Q30UT
Output(25°C)* 15 liters/hour 30 liters/hour
Flow rate Up to 2 liters/minute(with pressure tank)
Pure water outlet 2: reverse osmosis water, deionized water
Deionized water quality
Resistivity 16-18.2MΩ.cm
Bacteria N/A <0.1cfu/ml N/A <0.1cfu/ml
Particle(>0.1μm) N/A <1/ml N/A <1/ml
RO water quality
Ion rejection rate 96%-99% (new RO membrane)
Organic rejection rate >99%, when MW>200 Dalton
Particles and bacteria rejection rate >99%
Feed water requirements Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm2
Dimension and weight Length×Width×Height:500×360×540mm / Weight: about 20Kg
Electrical requirements AC110-240V, 50/60Hz
Power 120W
Standard configuration Main body (Including 1 set of cartridge)+15 liters pressure tank
Remarks:
*The value will be influenced by temperature and feed water’s quality.
