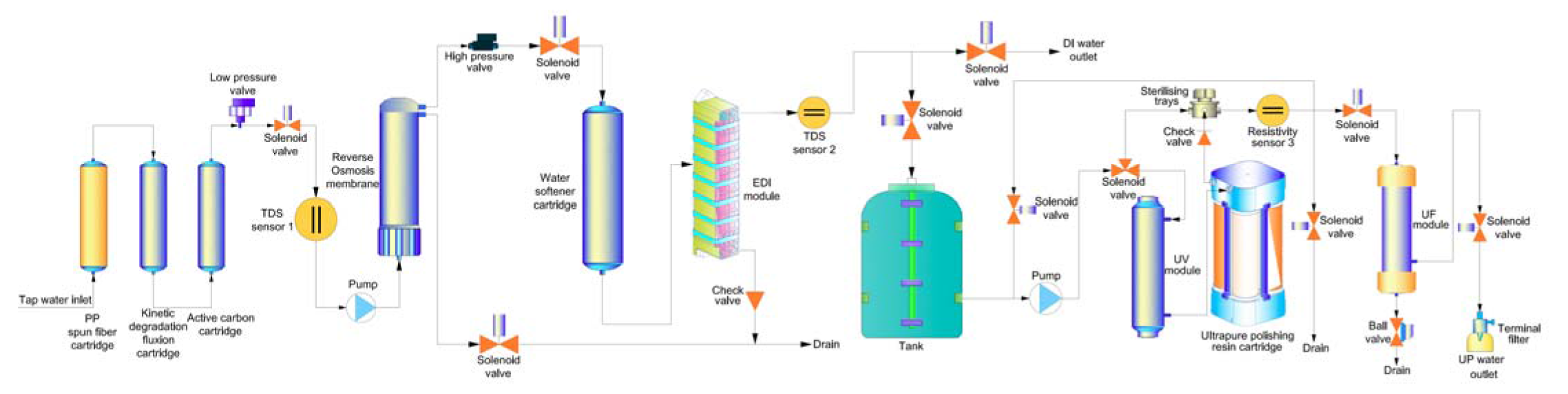

Flow Schematic

Specifications

Model Standard Eliminating endotoxin Low TOC Synthesizing
Edi-S10 Edi-S10UF Edi-S10UV Edi-S10UVF
Output 10 liters/hour
Pure water outlet 2: deionized water, ultrapure water
Ultrapure water quality
Resistivity(25°C) 18.2MΩ.cm
TOC* <10ppb <10ppb <3ppb <3ppb
Bacteria <0.1cfu/ml
Particle(>0.1µm) <1/ml
Endotoxin N/A <0.001Eu/ml N/A <0.001Eu/ml
RNases N/A <0.01ng/ml N/A <0.01ng/ml
DNases N/A <4pg/µl N/A <4pg/µl
Deionized water quality
Resistivity >5MΩ.cm
TOC* <30ppb
Silicone rejection rate >99.9%
Feed water requirements RO water, distilled water, deionized water, 5-45°C,1atm*
Dimension and weight Length×Width×Height:500×360×540mm / Weight: about 20Kg
Electrical requirements AC110-240V, 50/60Hz
Power 120W
Standard configuration Main body (Including 1 set of cartridge)
Remarks:
*The value will be influenced by temperature and feed water’s quality.
Edi-Q series can be upgraded to touch screen system, just the same as Master to Master Touch.
