※ Now : Products center >> Master Touch series >> Master Touch-S series

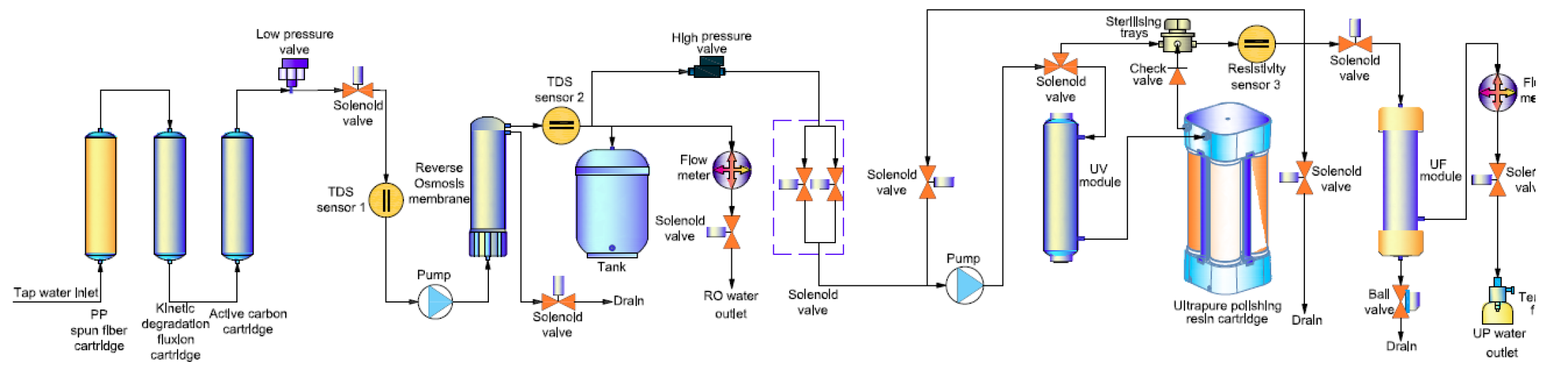

Flow Schematic

Specifications

Model Standard Eliminating endotoxin Low TOC Synthesizing
Master Touch-S15 Master Touch-S15UF Master Touch-S15UV Master Touch-S15UVF
Master Touch-S30 Master Touch-S30UF Master Touch-S30UV Master Touch-S30UVF
Output(25°C)* 15series-15 liters/hour, 30 series-30 liters/hour
Flow rate Up to 2 liters/minute(with pressure tank)
Pure water outlet 2: reverse osmosis water, ultrapure water
Ultrapure water quality
Resistivity(25°C) 18.2MΩ.cm
TOC* <10ppb <10ppb <3ppb <3ppb
Bacteria <0.1cfu/ml
Particle(>0.1µm) <1/ml
Endotoxin N/A <0.001Eu/ml N/A <0.001Eu/ml
RNases N/A <0.01ng/ml N/A <0.01ng/ml
DNases N/A <4pg/µl N/A <4pg/µl
RO water quality
Ion rejection rate 96%-99% (new RO membrane)
Organic rejection rate >99%, when MW>200 Dalton
Particles and bacteria rejection rate >99%
Feed water requirements Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm2
Dimension and weight Length×Width×Height:500×360×540mm / Weight: about 20Kg
Electrical requirements AC110-240V, 50/60Hz
Power 120W
Standard configuration Main body (Including 1 set of cartridge)+15 liters pressure tank
Remarks:
*The value will be influenced by temperature and feed water’s quality.
