 鈥 Now : Products center >> >> Medium-1600S ultrapure water system

Medium-1600 series is nearly the smallest water system, with the same output-250 liters/hour. It meets the requirements of water for production and central water supply.
Medium-1600S is ultrapure water system, with LCD controlling system, 2 way water quality sensor, timing and quality dispensing, stainless steel shell. The single stage RO water鈥檚 ion rejection rate is more than 97%, and the ultrapure water鈥檚 resistivity absolutely reaches to 18.2M惟.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.

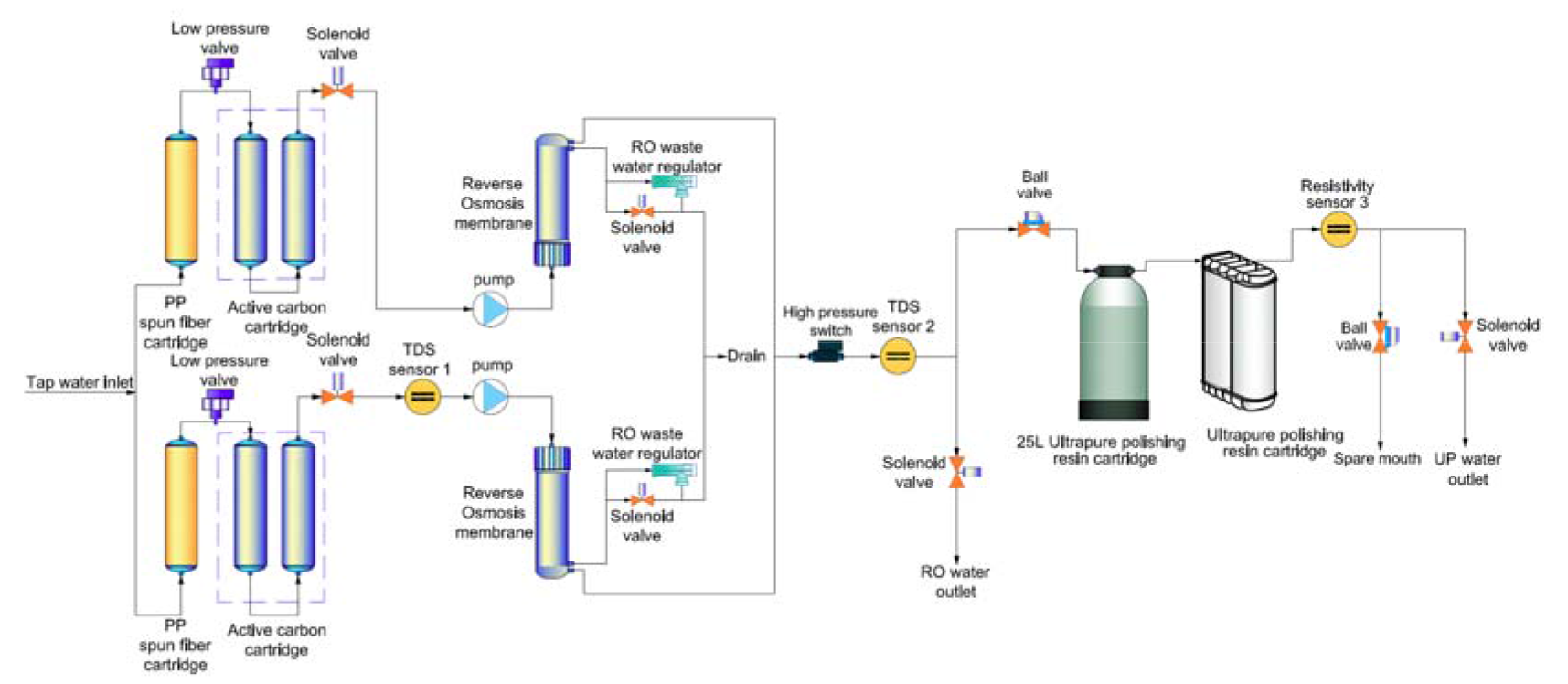

Flow Schematic

Specifications

Model Medium-1600S
Output(25掳C)* 250 liters/hour
Pure water outlet 2: reverse osmosis water, ultrapure water
Ultrapure water quality
Resistivity(25掳C) 18.2M惟.cm
TOC* <10ppb
Bacteria <0.1cfu/ml(with optional 0.2碌m PES terminal filter)
Particle(>0.2碌m) <0.1cfu/ml(with optional 0.2碌m PES terminal filter)
RO water quality
Ion rejection rate 96%-99% (new RO membrane)
Organic rejection rate >99%, when MW>200 Dalton
Particles and bacteria rejection rate >99%
Feed water requirements Tap water, temperature:5-45掳C,pressure:1.0-4.0Kgf/cm2
Dimension and weight Length脳Width脳Height:760脳550脳1210mm / Weight: about 88Kg
Electrical requirements AC110-240V, 50/60Hz
Power 480W
Standard configuration Main body (Including 1 set of cartridge)
Remarks:
*The value will be influenced by temperature and feed water鈥檚 quality.

Cartridges

Item no. Commodity Approximate replacement term /set
PC-20PP 20" spun fiber cartridge 2-6 months
PC-20AC-G 20" granular active carbon cartridge 2-6 months
PC-20AC-B 20" active carbon block cartridge 2-6 months
RO-150GPD 150 GPD reverse osmosis membrane 12-24 months
RO-200GPD 200 GPD reverse osmosis membrane 12-24 months
RO-300GPD 300 GPD reverse osmosis membrane 12-24 months
RO-400GPD 400 GPD reverse osmosis membrane 12-24 months
RO-600GPD 600 GPD reverse osmosis membrane 12-24 months
PTC-AC-HZB1 Reducing TOC cartridge 9000 liters pure water
PTC-MBR-12L 12l mixed bed resin cartridge 20000 liters pure water
PTC-UPPR-12L 12l ultrapure polishing resin cartridge 20000 liters pure water
PTC-MBR-25L 25l mixed bed resin cartridge 40000 liters pure water
PTC-UPPR-25L 25l ultrapure polishing resin cartridge 40000 liters pure water
PTC-UPPR-M Ultrapure polishing resin cartridge 1000 liters pure water/set
TF-0.2µm-B 0.2µm terminal filter -
UF-5000D MWCO5000D UF cartridge -
LAMP-(185nm&254nm)-10W-M Double wavelength(185&254)nm uv lamp 9000 hours
