With 7.0 inch touch screen system, 3 way water quality sensor, 2 way flow sensor for quantified dispensing, and 2 stage RO system, Center series ultrapure water system is top choice of high flux ultrapure water for high grade experiments. With tap water inlet, its output ranges from 45 to 90 liters/hour. It can produce 2nd stage RO water and ultrapure water. The 2nd stage RO water鈥檚 conductivity can stay 1-5渭s/cm, and the ultrapure water鈥檚 resistivity absolutely reaches to 18.2M惟.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.

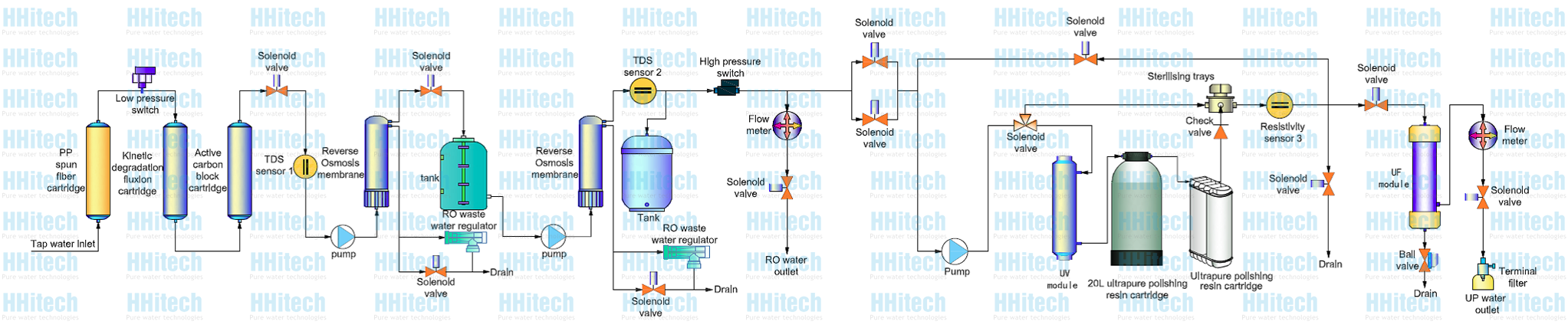

Flow Schematic


Model Standard Eliminating endotoxin Low TOC Synthesizing
Center 45/60/90 Center 45/60/90F Center 45/60/90V Center45/60/90FV
Output -2nd stage RO water* 45series-45 liters/hour, 60 series-60 liters/hour, 90 series-90 liters/hour
Output -ultrapure water Up to 2 liters/minute (when tank is full)
Ultrapure water quality
Resistivity(25掳C) 18.2M惟.cm
TOC* <10ppb <10ppb <3ppb <3ppb
Bacteria <0.01cfu/ml
Particle(>0.2渭m) <1/ml
Endotoxin N/A <0.001Eu/ml N/A <0.001Eu/ml
RNases N/A <1pg/ml N/A <1pg/ml
DNases N/A <5pg/ml N/A <5pg/ml
RO water quality
Conductivity - 1st stage RO water Feed water conductivity脳5%*
Conductivity - 2nd stage RO water 1-5&Micro;s/cm*
Feed water requirements Tap water, temperature:5-45掳C,pressure:1.0-4.0Kgf/cm2
Dimension and weight Length 脳 Width 脳 Height: 610脳585脳1580mm / Weight: about 75Kg
Electrical requirements AC110-240V, 50/60Hz
Power 480W
Standard configuration Main body (Including 1 set of cartridge)+built-in 20 liters PE tank and 20 liters pressure tank
*The value will be influenced by temperature and feed water鈥檚 quality.


Item no. Commodity Approximate replacement term /set
C-PP Pretreatment cartridge 2-6 months
C-AK KDF+ granular active carbon mixed cartridge 12 months
C-AC2 Active carbon block cartridge 6 months
C-RO-200 200 GPD reverse osmosis membrane 12-24 months
C-RO-300 300 GPD reverse osmosis membrane 12-24 months
C-RO-400 400 GPD reverse osmosis membrane 12-24 months
C-RO-500 500 GPD reverse osmosis membrane 12-24 months
C-RO-600 600 GPD reverse osmosis membrane 12-24 months
C-EDI-HX50 EDI module 12-36 months
C-EDI-HX100 EDI module 12-36 months
C-Decart1 High flux mixed bed resin cartridge 35000 liters pure water
C-Pocart3 High flux ultrapure polishing resin cartridge 35000 liters pure water
C-Pocart4 Ultrapure polishing resin cartridge 5000 liters pure water
C-Uvlcart-14W (254&185)nm wavelength uv module --
C-Uvlamp-14W (254&185)nm wavelength uv lamp 9000 hours
C-Ufcart Eliminating endotoxin uf cartridge --
C-Tefit 0.2µm terminal filter --
